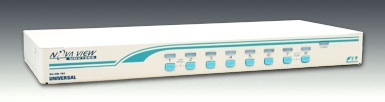

Specification | UNV108D |
Computer port number | 8 |
Cascade control PC number | Up to 64* |
Cable type | 1-to-2,
for USB computer, CBMxxxH 1-to-3, for PS/2 computer, CBMxxxUH |
Applicable to computer | PS/2 PC, USB-Sun, USB-Mac |
On-screen display (OSD) | Yes |
Pushbutton control | 8 |
Computer ready LED, green | 8 |
Computer selected LED, red | 8 |
Hot plug-and-play | Yes |
Hotkey control | Yes |
Rack-mounted | 19” industry-standard |
Automatic scan interval | 3, 8, 15, 30 seconds |
Programmable scan pattern | 3 options available |
Computer name entry | 14-character |
Security control | 4-character password per computer |
Cable length (Max) | 30M
(100ft) at CONSOLE 30M (100ft) at PC ports for PS/2 computer 5M at PC ports for USB computer |
VGA bandwidth | 1920 x 1440, DDC2B |
Computer connector | HDB15 female x 8 |
Console connector | PS/2
Keyboard, female x 1 PS/2 mouse, female x 1 HDB-15 monitor, female x 1 |
H x W x
D (mm) (in.) |
44 x 436
x 180 1.7 x 17.2 x 7.0 |
Rear-mount brackets | 1U-height, included |
size | 1U |
Power
supply (min) |
External power adapter 9V DC, 600mA |
Specification | UNV116D |
Computer port number | 16 |
Cascade control PC number | Up to 136* |
Cable type | 1-to-2,
for USB computer, CBMxxxH 1-to-3, for PS/2 computer, CBMxxxUH |
Applicable to computer | PS/2 PC, USB-Sun, USB-Mac |
On-screen display (OSD) | Yes |
Pushbutton control | 8 |
Computer ready LED, green | 16 |
Computer selected LED, red | 16 |
Hot plug-and-play | Yes |
Hotkey control | Yes |
Rack-mounted | 19” industry-standard |
Automatic scan interval | 3, 8, 15, 30 seconds |
Programmable scan pattern | 3 options available |
Computer name entry | 14-character |
Security control | 4-character password per computer |
Cable length (Max) | 30M
(100ft) at CONSOLE 30M (100ft) at PC ports for PS/2 computer 5M at PC ports for USB computer |
VGA bandwidth | 1920 x 1440, DDC2B |
Computer connector | HDB15 female x 16 |
Console connector | PS/2
Keyboard, female x 1 PS/2 mouse, female x 1 HDB-15 monitor, female x 1 |
H x W x
D (mm) (in.) |
44 x 436
x 180 1.7 x 17.2 x 7.0 |
Rear-mount brackets | 1U-height, included |
size | 1U |
Power
supply (min) |
External power adapter 9V DC, 600mA |
